W2 Series - Low loss & Phase stability cable (VP : 77 %)

TM

W2 Series are complete line of high performance flexible microwave

cable assemblies.

The W2 have Low density PTFE(W201,W213) and porus PFA (W202,W203) sturucture to achieve velocity propagation of 77 % or 78 %



W2 Series have excellent RF performance up to 26.5, 40, 50 & 67 GHz

respectively





Typical Applications



- Telecommunication systems

- Board-to-board Systems

- Environmental test chambers

- Antenna Arrays

- Test bench systems

- Wafer probing





Click for detail spec. !

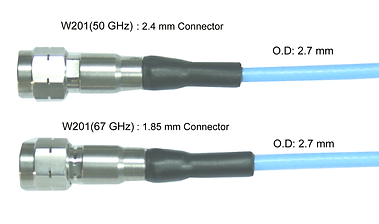

High Performance Cable

: 50& 67 GHz (W201)

Phase vs temperature stability Cable

   : 26.5 & 40 GHz(W202,203)

Phase & Amplitude Stable Cable

         : 26.5,40 & 50 GHz (W204)

version_1.4

version_rev 1.1


version_rev 1.0

Low loss flexible Cable

  : 26.5 GHz (W213)

version_rev 1.0
