Probe Positioner

Probe Positioner_withwave

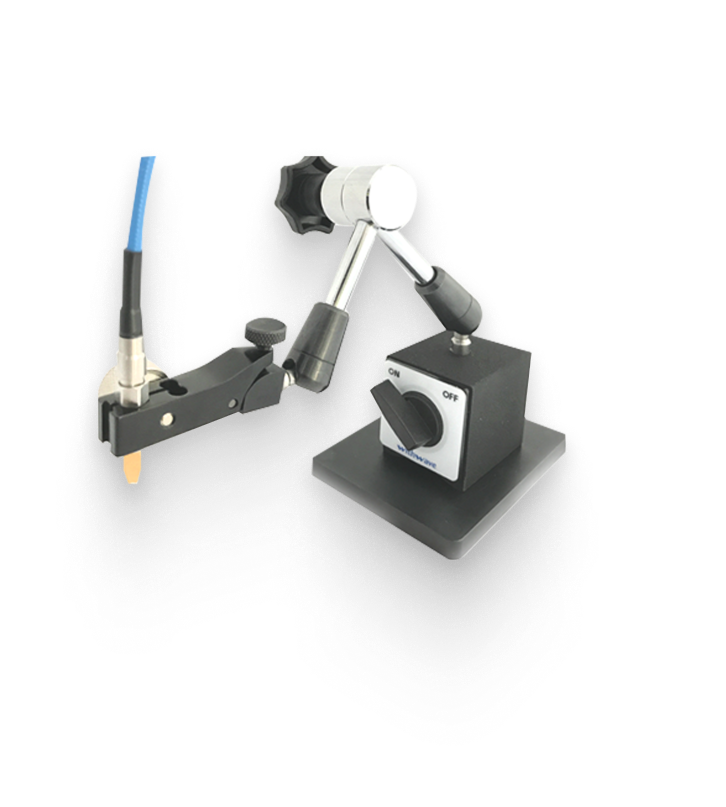

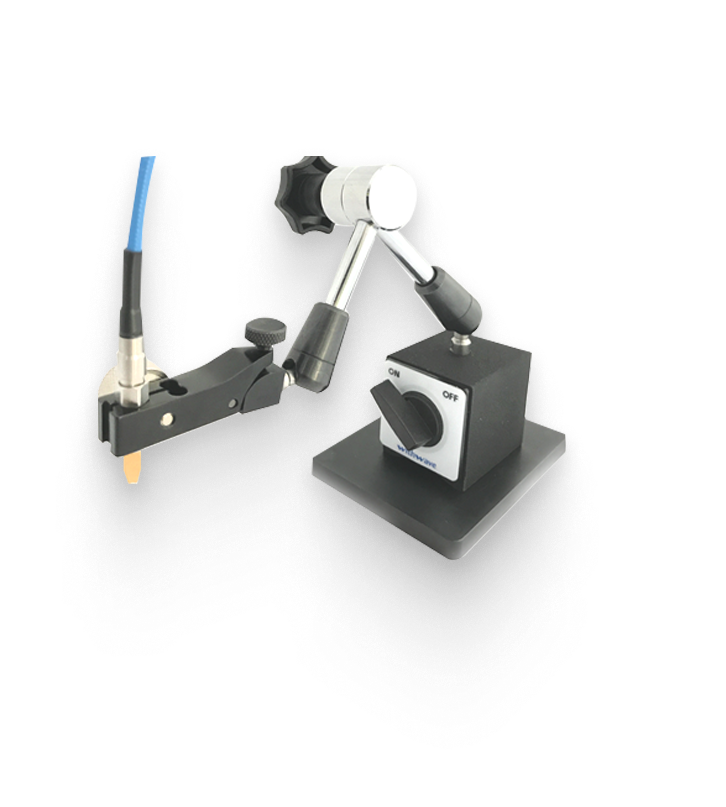

Withwave's Probe Positioner is designed for precise RF probing measurement using T-probe which have GSG and GS contact structure.

  The magnetic switch on metal base plate can be turned on and off

 to keep the positioner firmly to its position or moved and lifted to a new position easily.

 Its articulated arm is controlled by on arm knob at the middle joint

that keep the arm firm and steady.



Advantage



- Articulated and Flexible Joints

- Easy to control to X-, Y-, Z- direction using Arm Knob

- Stable test measurement



Applications

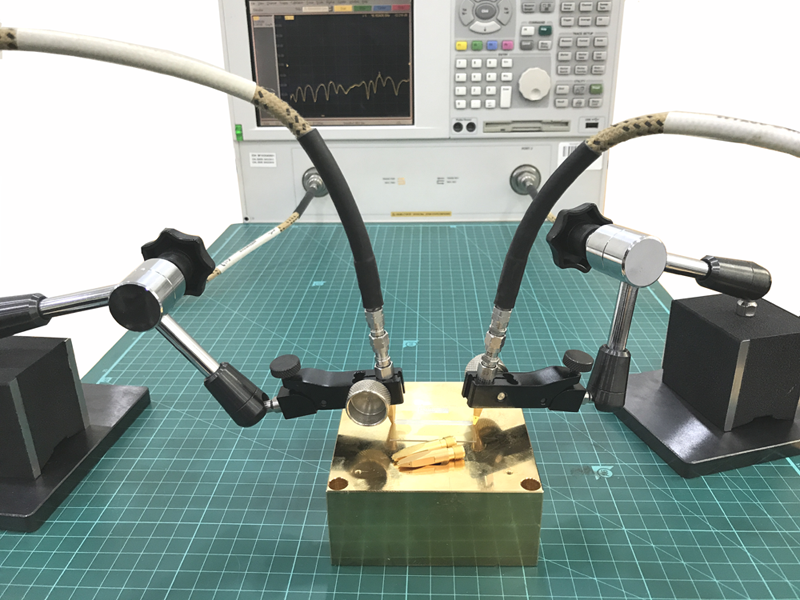

- RF & Microwave module signal insertion, detection & output measurement

- High frequency circuit board electrical performance analysis





Probe Positioner_withwave

Click on this datasheet  !

Probe Positioner_withwave

Version : 191001_ver1.2
